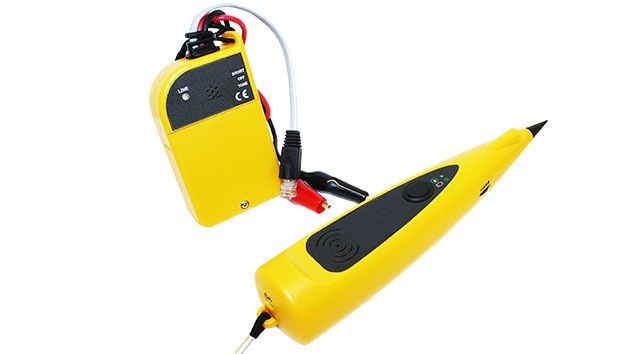

Pro220K Tone generator and probe kit



Bestel
The add to cart button will appear once you select the values above
Detail

The Pro220K traces a wire or connector among a bundle of wires at the network, telecom and security wiring without making a contact. Tracing wire or connector will be easy by simply pointing the Pro210F Receiver above the wires containing the 1kHz powerful tone from the generator. The Pro220K reach up to 32 km length at CAT3 the high powered signal which goes through the walls and ceilings makes it a unique product. The Pro110 Generator has a continuity test N.O.-N.C. with speaker and LED. The Pro210F receiver has the choice between broadband or filter mode (AC 50 Hz). The Pro210F receiver has a bright LED headlight for dark areas. The Pro220K uses AA batteries to achieve a long service life.
Suitable for a wide range of applications:
- Wire tracer
- Wire Control / check
- Connector tracer
- Continuity test
- Numbering
What delivers the Pro220K:
Low investment for a set that offers:
- Cost reduction
- High Quality
- Versatility
- Easy to operate
- Quick operation
- Time saving

For

Intended:

  • Air Conditioning
  • Alarm systems
  • Boats
  • Fire protection
  • Aviation
  • Machine manufacturers
  • Medical equipment
  • Networking
  • Offshore
  • Telecommunications
  • Heating
  • Control systems
  • Space industry
Features
  • Advanced 50Hz suppression
  • Bright LED light
  • Long battery life
  • Continuity test
  • Battery LED indicator
  • Volume control
  • Headphone connector
  • N.O. test circuits
  • Test circuits N.C.
  • Hanging strap
Specification

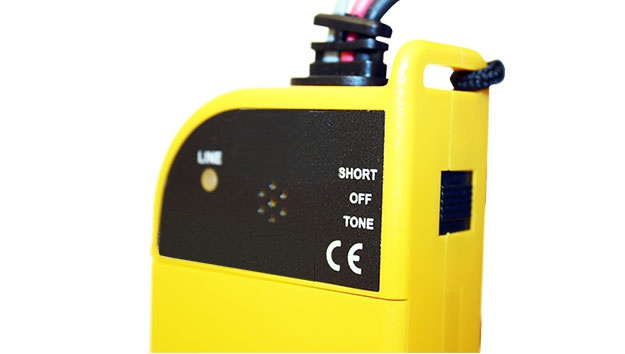

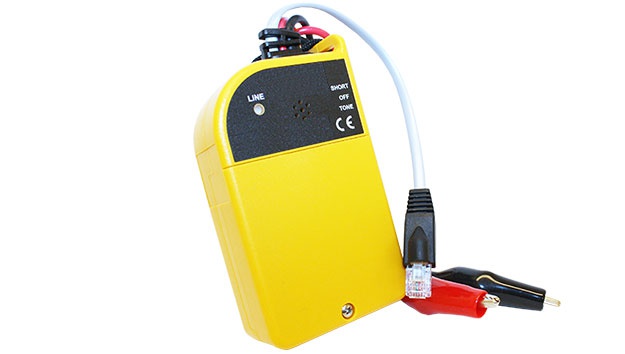

Pro110 Generator Pro220K
Frequency: 1 kHz Analog
Audible Continuity Buzzer: Yes
Power supply: 4 x AA batteries
Battery life: 200 hour minimum
Measures: N.O. Circuits
  N.C. Circuits
Mounting: Lanyard Hanging
  Loop for Hook
Water resistant: Splash
Maximum AC: 60 Volts
Maximum DC: 60 Volts
Dimensions: Height: 10.5 cm
  Width: 6 cm
  Height: 3 cm
Weight: 120 grams (0.3 lb) without batteries
  210 grams (0.5 lb) with batteries

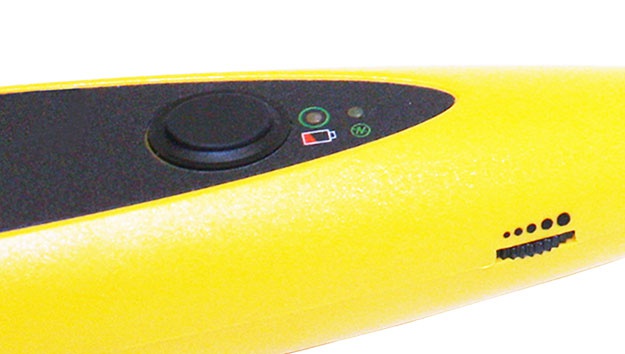

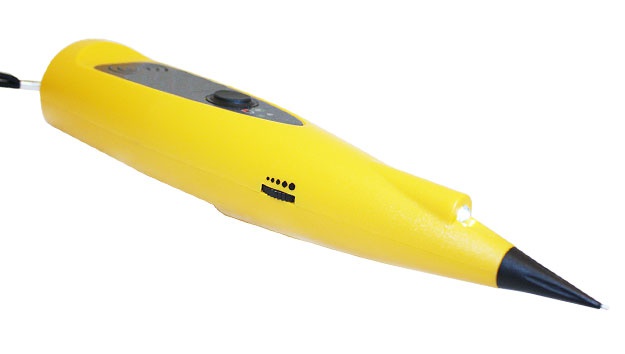

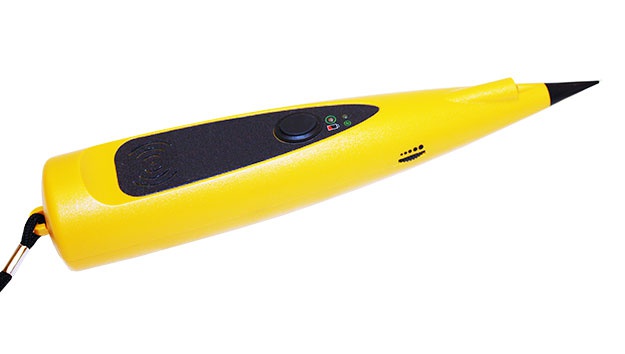

Pro210F Receiver Pro220K
Frequency: 40 Hz - 4 kHz Analog
Signal: Audio and visual
Signal increase: contact of the plastic tip surface or wire
Filter mode: Broadband
  AC 50Hz filter
Headlight: Bright white LED for dark areas
Volume Control: Yes
Headset connection: 3.5 mm jack for earphones or headphones
Point: Plastic
Tip: Metal
Mounting: Loop for Hook or Lanyard Hanging
Water resistant: Splash
Power supply: 4 x AA batteries
Battery Life: 200+ Hours
Environment temperature: 0 ° C to 50 ° C (32 ° F to 122 ° F)
Storage temperature: 0 ° C to 50 ° C (32 ° F to 122 ° F)
Dimensions: Length 24 cm
  Width: 5 cm
  Height: 5 cm
Weight: 125 grams (0.3 lb) without batteries
  215 grams (0.5 lb) with batteries

General
Cabling Standards: Telecom cabling: PTT standard 88
  Computer cabling Cat 3/8 STP
Identification: Connections, wires and cables
Total weight: 388 grams (0.85 lb) without batteries
  576 grams (1.3 lb) with batteries
Approval: CE, RoHS and WEEE
Content

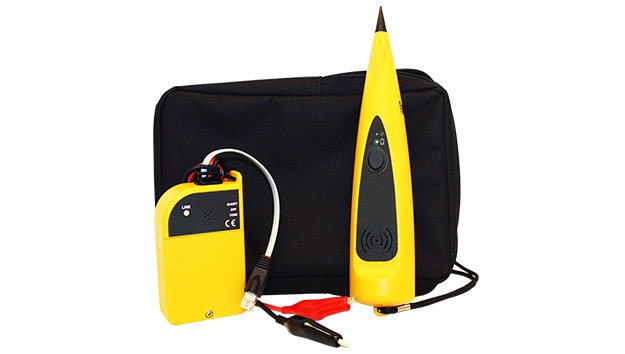

Pro220K Tone generator and probe kit
User manual

Option
Prijs
255,31 € (211,00 € excl VAT) each
